New Stainless Steel Throttle Lever for E-PowerBarrow

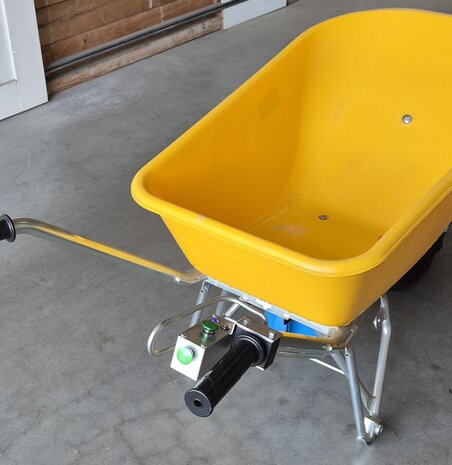

Available from May 19, 2025, the new throttle lever model for the E-PowerBarrow electric wheelbarrow.

How to replace it?

Important: Work on a clean surface due to small parts.
At the bottom of the throttle lever, there is a plate fastened with four small screws. Remove this plate carefully.
Underneath, you'll find a connector that can be gently unplugged.
Once the connector is disconnected, remove the two screws that attach the throttle lever to the frame. The old throttle lever can now be removed.

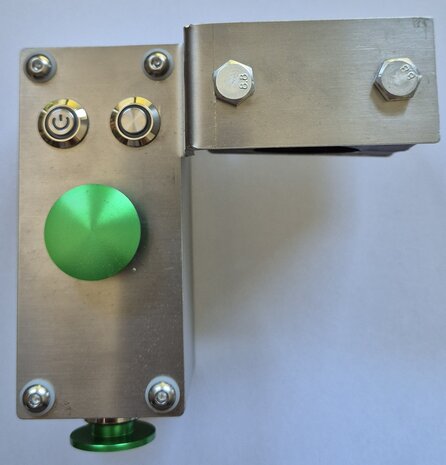

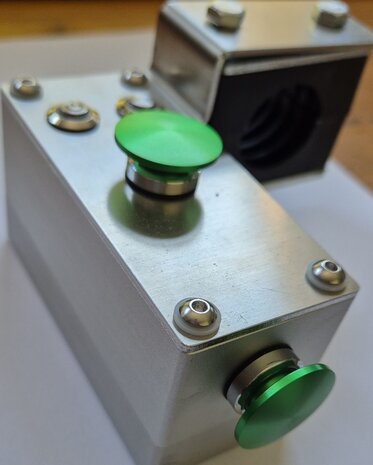

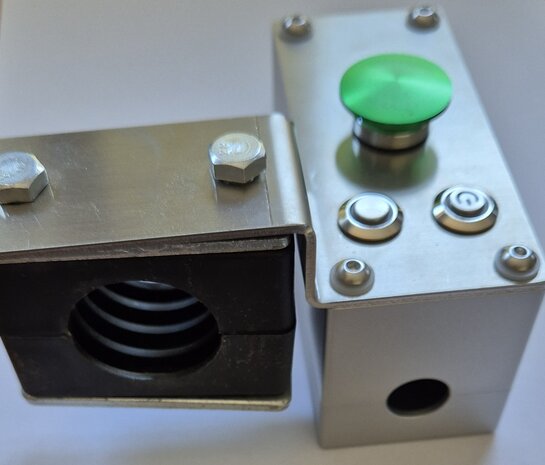

Open the new throttle lever by unscrewing the four screws on the top side.
Also remove the two screws used to mount the throttle lever around the handlebar.

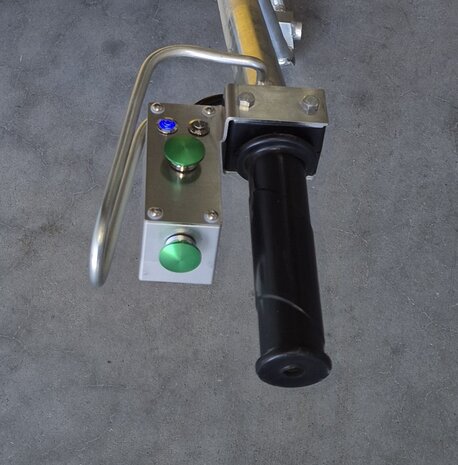

Now mount the new throttle lever onto the frame of the wheelbarrow.
You may need to slightly bend the protective bracket to make it fit.

Once the throttle lever is mounted, reconnect the plug.
Note the two cut-outs – the plug will only fit into the socket in one orientation.
Finally, insert the rubber grommet into the round recess and close the housing.
