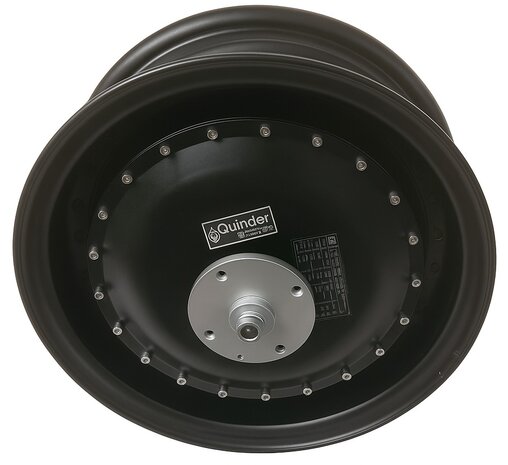

Quinder 16 inch HUB motor 2.1Kw 900Nm without tire
Quinder 16 inch HUB motor without tire. 60V system with 2100 Watts of power and a torque of 900 Nm. This engine is developed for nursery mechanization.

Product number

10101055

Default delivery time

3 -7 working days

€ 3.295,00
excl. VAT
€ 3.986,95
incl. VAT
Quantity:
Order


Quinder E-Drives professional 16 inch HUBmotor 60V

This engine has been developed for pure performance in the AGRI sector. The 16-inch rim has a maximum speed of approximately 11 km/h with a standard tire (700R16). The motor can be equipped with a 2486 PPR encoder

Advantages of a hub motor

The Quinder hub motors have the advantage that they are easy to use in all kinds of machines. From a construction point of view, the hub motor is an easy way to power a vehicle electrically. An additional advantage is that the work can be done relatively narrowly, which will certainly be appreciated by many customers in the nursery industry.

Drive concepts

This engine can actually easily function in all kinds of drive concepts. 1-wheel drive but also 2,3,4-wheel drives are possible. With the latter it is important to use a steering sensor to be able to control the wheels independently in bends.

Technology

The Quinder HUB motor is a Permanent magnet DC brushless HUB motor with a gear. This allows the motor to deliver a lot of power and limits the speed. The nominal power of this motor is 2100Watt or 2.1Kw. Due to the high power, a 60V system was chosen. The planetary gear in the motor is maintenance-free.

Built quality

The Quinder 60V HUB motor has IP65 protection and a TüV certificate

Watch the video of these Quinder HUB engines on YouTube
Intent of use
Specially developped for agricultural vehicles
Certificates
TüV
Power
2100Watt
Motor type
S1 Brushless
Maximale omwentelingen
+/- 88RPM (NON LOAD Speed)
Vmax
12Kmh with 700R12 Tire
stroomverbuik
equal or less then 45A
Slot number
63
Number of poles
2P=56
Inner gear
self-lubricating, No maintenance
Speed ratio
7.4
Motor protection temp.
105 degrees Celcius
Motor cut-off temp.
110 degrees Celcius
Operational conditions
-20 degrees Celcius - +40 degrees Celcius
Rim size
16 inch
Tire type
700R12
Construction level
IP65 DO NOT PUT MOTOR UNDER WATER
Warranty b2b
1 year
Operating conditions
-20 ËšC tot 40 ËšC
