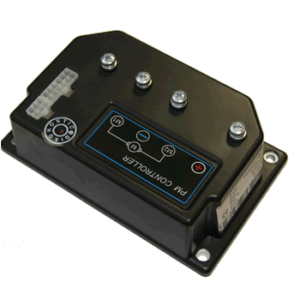

DC motor controller for 24V PRAMAC electric pallet truck

This controller is spare part no. G076091 for the PRAMAC electrically powered pallet truck.

Technical specifications

Voltage: 24 volts
Minimum voltage: 16 volts
Maximum voltage: 32 volts
Maximum current: 60 amps (for 1 hour with active cooling)
Maximum current: 150 amps (for max. 1 minute)
Switching frequency: 15 kHz
Minimum operating temperature: −20 °C
Maximum operating temperature: +40 °C
Motor voltage at nominal load (Imot = 40 A):
23.4 V at (24 V battery, 25 °C)
Weight: 850 g
