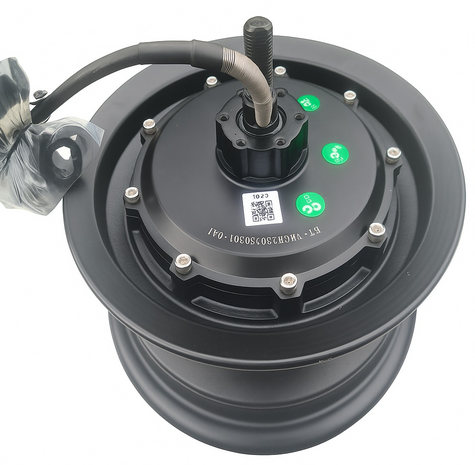

Quinder Brushless HUB Motor for Agricultural Applications

The Quinder Brushless HUB Motor is a rugged, high-efficiency electric drive system engineered specifically for use in agricultural machinery and low-speed industrial automation. Based on brushless motor technology, this drive delivers consistent torque, long service life, and minimal maintenance, making it ideal for harsh environments and continuous operation.

🔧 Core Technical Specifications

Brushless HUB Motor (550W, 48V)

• Nominal Motor Power: 550W (S1 operation)

• Peak Motor Power: 1002W

• Rated Voltage: 48V DC

• Gear Ratio: 5:1, self-lubricating gear system

• Max Torque: 97.4 Nm

• Pole Configuration: 2P = 20

• Max Speed: 6 km/h (with standard 4.00-8 tire)

• Installation Width: 138 mm

• Rim Size: 8-inch

• Tire Width Compatibility: ~100 mm

• Connector: 200 mm Higo cable

• Enclosure Rating: IP66 – dust-tight and protected against high-pressure water jets

• Housing Finish: Black powder-coated

• Integration: Plug-and-play with standard Quinder controllers

Optional: Absolute Encoder (Available from 2026)

• Resolution: 14 bits/rev

• Interface: RS485

• Backup: No battery required

• Enables high-accuracy position feedback for automation and robotics

⚙️ Optional: Programmable BLDC Motor Controller

The 48V Quinder BLDC Controller offers precise, customizable control of your HUB motor through analog 0–5V input/output signals. Ideal for technicians looking for fast, plug-and-play deployment with full access to performance tuning.

Key Features:

• Drive Mode Customization: Adjust acceleration, torque, and resistance levels

• Easy Configuration:

  • Rewrite App – On-site tuning

  • ProClient App – Upload and manage settings

• Integration Options:

  • Supports plug-and-play thumb throttles and FWD/REV switches

🧪 Proven in Demanding Applications

The Quinder Brushless HUB Motor is used by leading developers of agricultural and robotic systems:

• Digital Workbench, Germany – Agri Robot

• Gebr. Ezendam, Netherlands – Weeding & hoeing machinery

• AIGRO, Netherlands – Autonomous agricultural robots

• University of Kassel, Germany – Engineering research projects

• Dutch Technical High Schools – Robotics education platforms

• Normec Rei-Lux, Netherlands – Public safety robots

✅ Benefits for Engineering Teams

• Long-Term Reliability: Brushless design with sealed IP66 housing for extended service life

• Precision Control: Optional encoder and programmable controller for tailored performance

• Plug-and-Play Integration: Preconfigured components reduce setup time

• Scalable Applications: Designed for AGRO vehicles, autonomous platforms, and robotics

📦 CAD Support

Need design files? 3D STEP files are available to assist with integration into your system design.

📩 Contact Us

Upgrade your agricultural or robotic platform with the Quinder Brushless HUB Motor Drive Set. For technical specifications, CAD files, or order inquiries, contact us directly.
