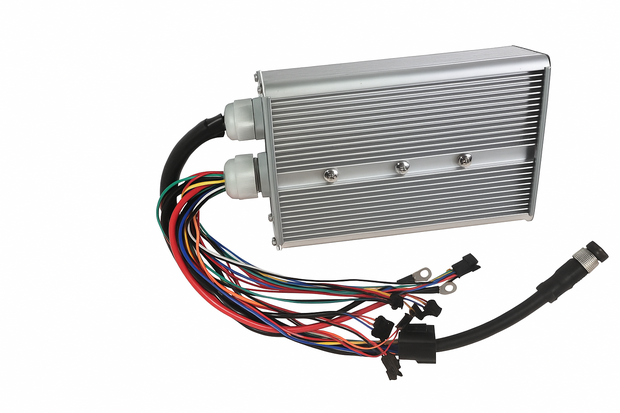

🔧 Quinder 60V FOC Brushless Motor Controller
The Quinder 60V FOC Brushless Motor Controller is a high-performance motor controller for 60V brushless DC hub motors. Designed for smooth and efficient motor control, it delivers high torque, precise speed regulation, and reliable operation for professional electric vehicles and custom drive systems.
With its waterproof HIGO connectors and plug-and-play wiring, installation is fast and straightforward. The controller is fully programmable, allowing motor parameters to be optimized for a wide range of applications.
Available from stock. Price upon request.
⚙️ Key Specifications
- Operating voltage: 60V DC
- Maximum battery current: 45A ±1A
- Low-voltage protection: 46V ±1V
- Control technology: FOC (Field Oriented Control) sinusoidal controller
- Programming file: 60VNJC.bin
- Waterproof HIGO plug & play connectors
🚀 Features
- Fully programmable motor controller
- Smooth and quiet FOC motor control
- High starting torque and excellent low-speed performance
- Cruise control
- Electronic braking with three selectable levels (Strong / Medium / Weak)
- Reverse function
- Low-voltage warning with acoustic signal
- LED brake indication
Note: Electronic braking is intended as a driving aid and does not replace mechanical brakes. Braking is unavailable during power loss.
🔌 Connections
- 60V DC battery input
- Hub motor
- Throttle
- Brake input
- Cruise control
- Forward / Reverse switch
- Horn
- Display
⚡ Applications
- Electric wheelbarrows
- Nursery and horticultural vehicles
- Agricultural machines
- AGV and AMR vehicles
- Utility vehicles
- Custom electric drive systems
- Machines requiring high torque at low speeds
💡 Why choose the Quinder 60V FOC Controller?
The Quinder 60V FOC Controller combines high efficiency, smooth motor control, and powerful torque in a compact, programmable design. With a maximum battery current of 45A, waterproof plug-and-play connectors, and extensive configuration options, it is an ideal solution for OEMs, machine builders, and developers of professional electric vehicles.
